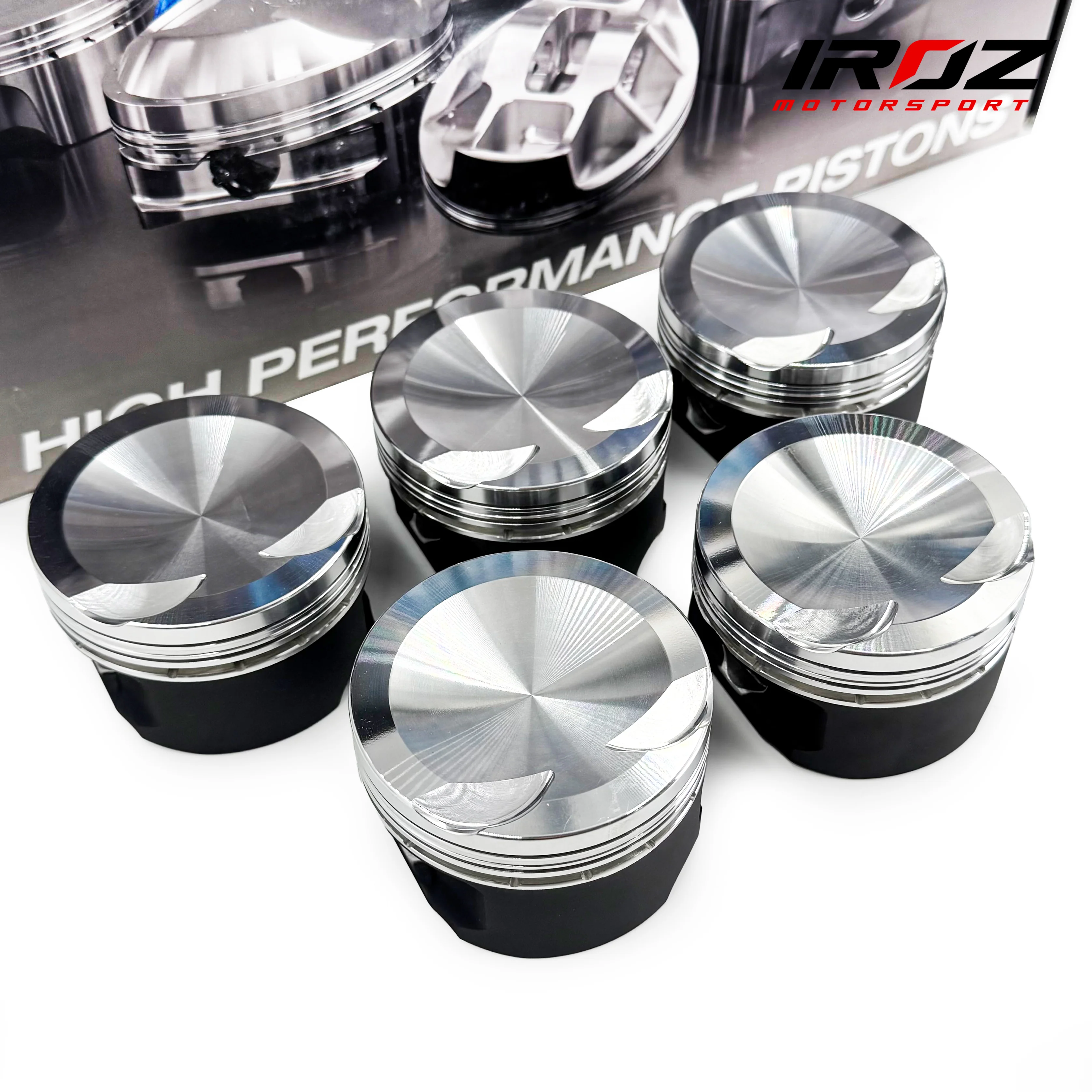

Shelf CP Forged Pistons for Audi RS3 (8V 8Y) & Audi TTRS (8S) DAZA DNWA Engines

Shelf CP Forged Pistons

Fitment: All Audi RS3 (8V / 8Y) & TTRS (8S) DAZA Engines

Bore Size: 82.5MM

Wrist Pin Size: 23mm

Compression Height: 1.165

Compression Ratio: 9.5:1

Volume CC's: -9.2

Weight: 313 grams

Piston Material: 2618

These Pistons Are Skirt Coated - The Standard CP Shelf Offering is NOT

Every piston is designed through extensive research and development with the support of some of the biggest names in motorsports. CP Pistons are designed for oversized valves, high lift camshafts and available in a variety of compression ratios and bore sizes. All of our products represent the highest quality and are engineered for maximum power.

Features:

• Balanced to + or - 1 gram

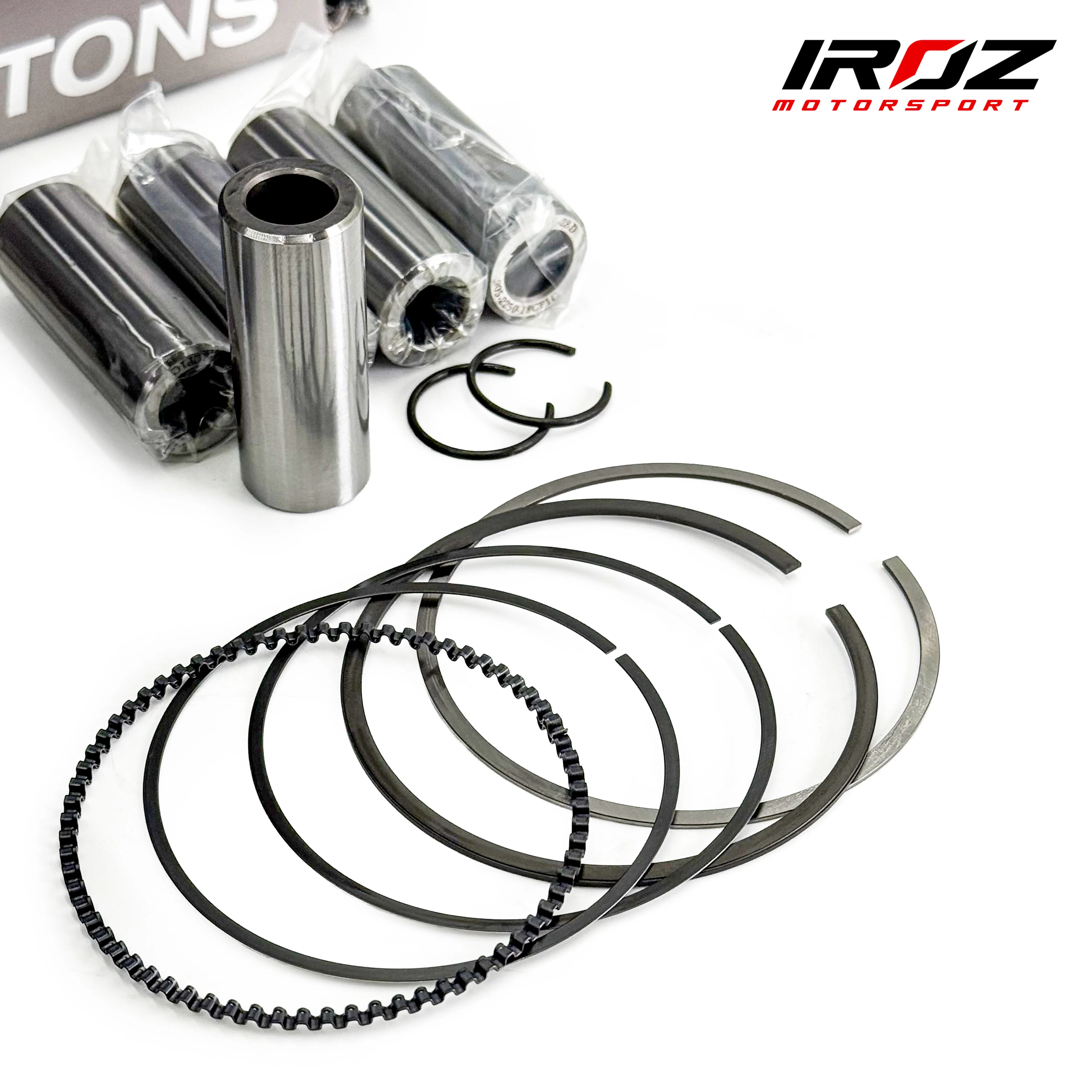

• Wrist pins provided at no cost
• Pin fitting provided at no cost
• Accumulator Grooves

• Pick lock grooves
• Radiused valve reliefs
• Fully CNC machined
• Laser Engraved Job Number for ease of traceability
