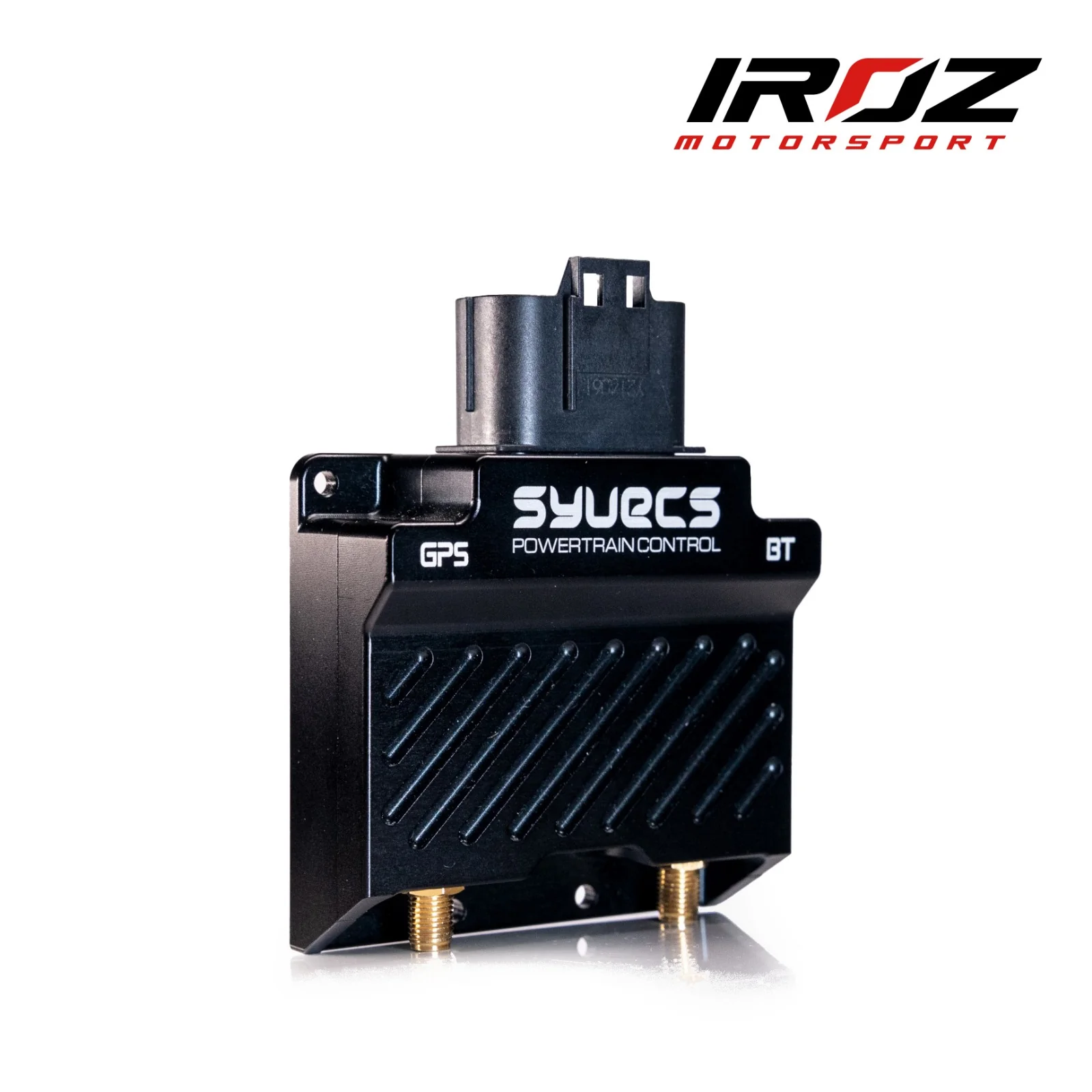

Product image 4

NEW Syvecs GPSBT | 100Hz | IMU | Bluetooth | CANBUS

NEW Syvecs GPSBT | 100Hz | IMU | Bluetooth | CANBUS

The new Syvecs GPSBT is the evolution of our trusted 100 Hz GPS/IMU Module, now enhanced with Bluetooth Low Energy (BLE) connectivity and a host of new features to improve usability and expand compatibility.

Still built around a 100 Hz high-speed GPS receiver and 6-axis IMU for ultra-precise speed, position, and motion data, the GPSBT adds powerful communication and control upgrades. It now includes both CAN and CAN FD interfaces, four digital inputs, four lowside outputs, OBD2 and BLE support to connect directly to smartphones, tablets, or vehicle infotainment systems.

Paired with the Syvecs Dash app, GPSBT unlocks real-time telemetry, lap timing, track mapping, and custom dashboards—ideal for motorsport, performance tuning, and live vehicle monitoring. Backward compatible and built to withstand demanding environments, GPSBT sets a new standard for onboard data capture and connectivity.


Communication Options -


DBC Import Function

Supports importing any CAN DBC file

Instantly compatible with major ECU systems (Syvecs, MoTeC, Pectel, Link, etc.)

OBD-II Functionality

Read & clear DTCs (Diagnostic Trouble Codes) from any OBD-II–equipped vehicle

Real-time data monitoring via standard OBD-II PIDs up to 200hz update rate depending on car CAN type.

Car Selection Presets

Preloaded configurations for vehicles (e.g., Nissan R35)

Simplifies CAN bus mapping for commonly used models

CAN TX Options

Transmit custom messages or “modes” back to the ECU

Flexibility to emulate sensors or inject control commands

Extensive CAN integration

Enables wireless pairing with:

Smartphones & tablets (iOS & Android)

In-dash head units (via BLE-capable interfaces)


Syvecs Dash Mobile Application -


Customizable Dash Layouts

Multiple dashboard templates, all fully configurable

Any data point can be displayed (e.g., RPM, temperatures, pressures, GPS speed)

Warning & Alert System

Define thresholds on any CAN or internal sensor value

Receive visual/audible alerts when limits are exceeded (e.g., oil pressure low, over-rev)

Performance Measurement

With GPSBT’s 100 Hz GPS, capture highly accurate speed data

Calculate 0–100 km/h, 100–200 km/h, ÂŒ mile times in real time

Drag Tree option to see reaction times also

Store best-run, quickest segment, and lap data

Track Mapping & Lap Timing

GPS-based auto‐track detection: draws the circuit as you drive

Automatic sector creation and timing: see best lap, sector times, etc.

Ideal for racers who want immediate feedback without manual track setup

Live Video Overlay

Stream video from your mobile device’s camera while driving

Overlay CAN & GPS data onto recorded footage (e.g., speed, G-forces, RPM)

Export annotated videos for analysis or sharing on social media

Data Logging

Log any CAN-bus channels or internal GPS/IMU data to your mobile device’s storage

Export CSV or native Syvecs Sview formats for post‐session analysis on a PC

Configurable I/O Control

Remotely set up module’s digital Inputs/Outputs via the app

Define input functions (e.g., lap-trigger switch, shift-light input)

Define output behaviors (e.g., activate a warning light, control a relay)

No need for a separate PC‐based configuration tool; everything happens in Syvecs Dash

Cross-Platform Support

Available on both Apple iOS and Android

Seamless updates via App Store or Google Play Store

Specifications

Outputs

4 x PWM Outputs - 2Amp Peak (100ms) / 1Amp Continuous

1 x 5V Sensor Supply (400ma Max)

Inputs

2 x Analogue (0-5V)

2 x Thermistor (0-5V)

Interfaces

1 x CAN 2.0B, user programmable

1 x CANFD, user programmable

1 x BLE (Bluetooth Low Energy) connectivity for wireless data exchange

USB C For Updates and Configuration

Power Supply

6 to 26V ignition switched supply

Physical

70 x 90 x 25mm

Environmental

High-quality anodized CNC aluminum body with waterproofing


$306.23

Original: $874.95

-65%
NEW Syvecs GPSBT | 100Hz | IMU | Bluetooth | CANBUS—

$874.95

$306.23
